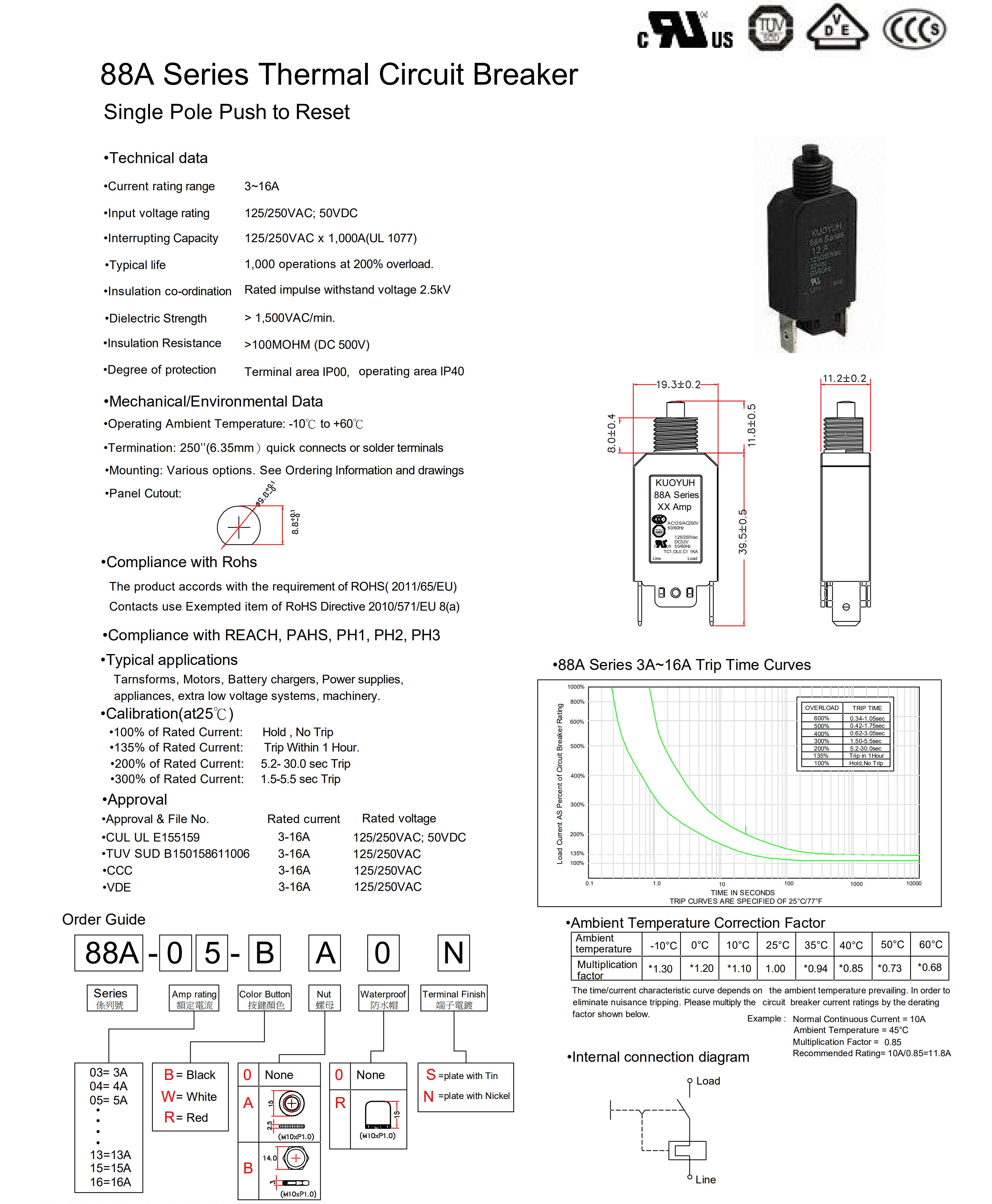

产品规格

额定电流(rating):3A-16A
输入电压(1InputPower):125VAC/250VAC/32VDC50-60Hz
耐电压强度(Withstand voltage strength):1500VAC/1min,漏电电流≤0.5mA
(1500VAC/min,the leaked current is less than≤0.5mA)
绝缘电阻(lnsulation Resistance):500VDC1Min≥100M2
额定短路能力(Rated short_circuit capacity):125VAC/1000A，250VAC/1000A
额定通断能力(Rated breaking capacity):6倍额定电流
(6 times rated current)
复位方式(Reset):手动复位(Manual PushReset)
